F-one Fuselage Carbon
F-one offers a wide range of carbon fuselage sizes to adapt to all levels and disciplines of foiling.
A longer fuselage will bring more stability on the water, while a shorter fuselage will make for more manoeuvrability with tighter, sharper and quicker turns.
The Fuselage Carbon is built in pre-preg carbon with a foam core to keep the weight extremely light. Some solidly anchored brass inserts are used for all fastenings. The Fuselage Carbon is an essential complement to the F-one Monobloc carbon wings. It connects with the front wing behind the Titan mast slot in an area where the loads are reduced. The shape of the connection is inspired from the TITAN design and offers a very robust and stiff assembly. At the back, the cradle for the stabiliser is designed with the right angle to make the perfect front wing attack angle.
Sizes: XXXS (Extra, Extra, Extra Short), XXS (Extra extra Short), XS (Extra Short), S (Short) and Long.

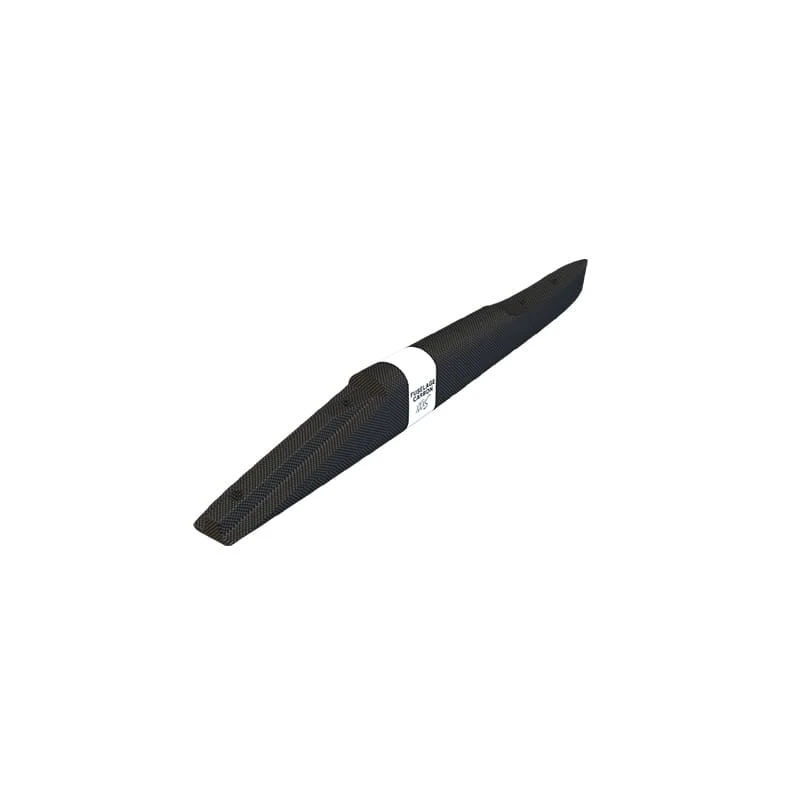

The XXXS (Extra, Extra, Extra Short) fuselage is recommended for use with the EAGLE HM CARBON 790 and the PHANTOM S CARBON 740.
Weight: 180 g
Length: 27.5 mm

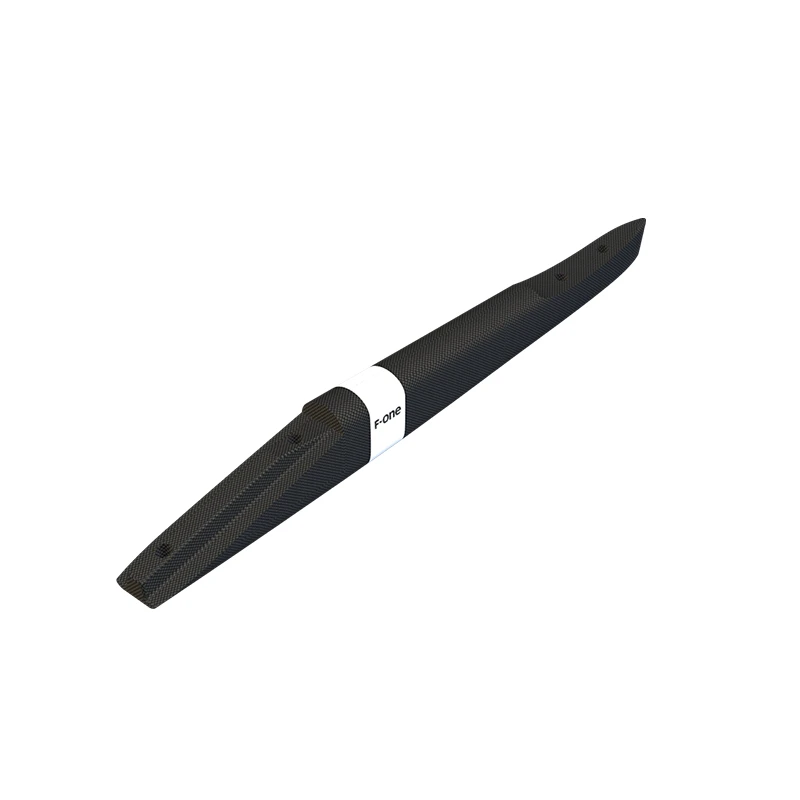

The XXS (Extra extra Short) fuselage is recommended for use with the EAGLE HM CARBON 890, 990 & 1090, the SEVEN SEAS 1000 & 1200, the PHANTOM S CARBON 840 & 940 and the PHANTOM CARBON 980 & 1080.
Weight: 180 g
Lenght: 300 mm

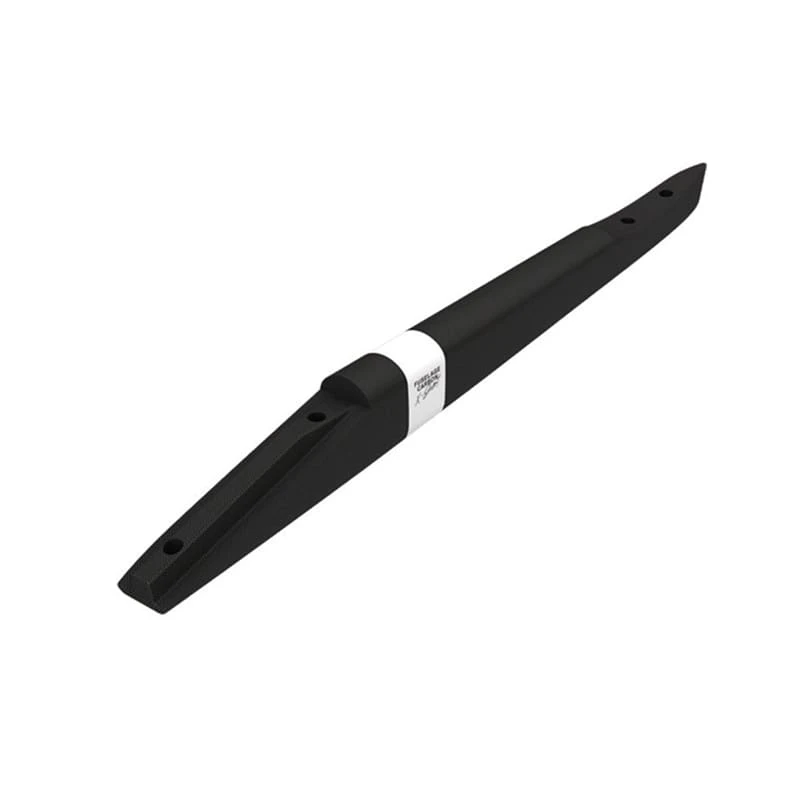

The XS (Extra Short) fuselage is recommended for use with the Gravity 1200 & 1500 and the Phantom Carbon 1280, 1480 & 1780.
WEIGHT: 200 g
LENGHT: 370 mm

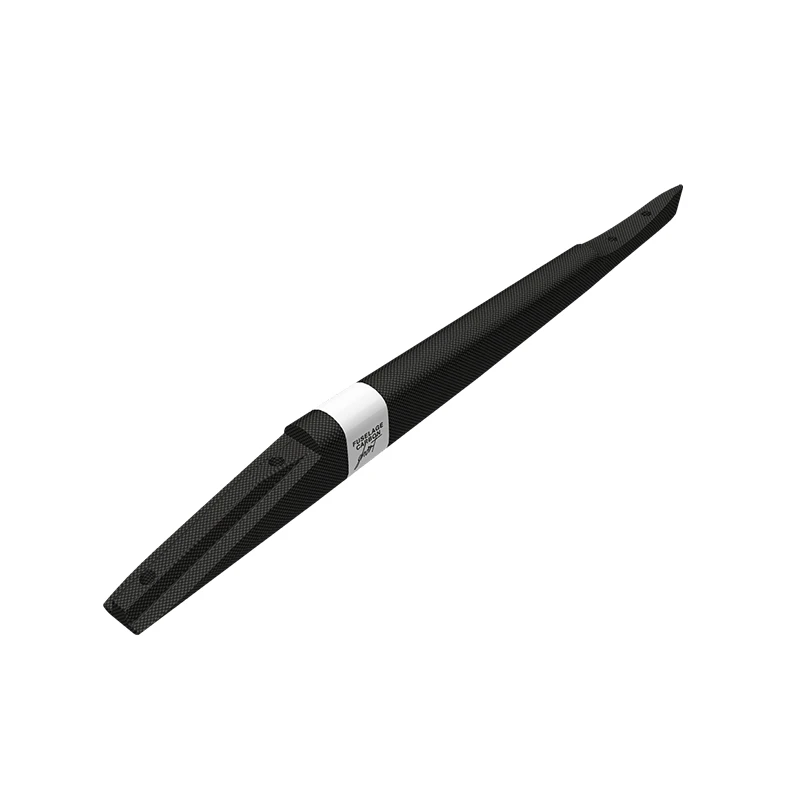

The S (Short) fuselage is recommended for use with the Gravity 1200 & 1500 and the Phantom Carbon 1280, 1480 & 1780.
WEIGHT: 200 g
LENGHT: 380 mm

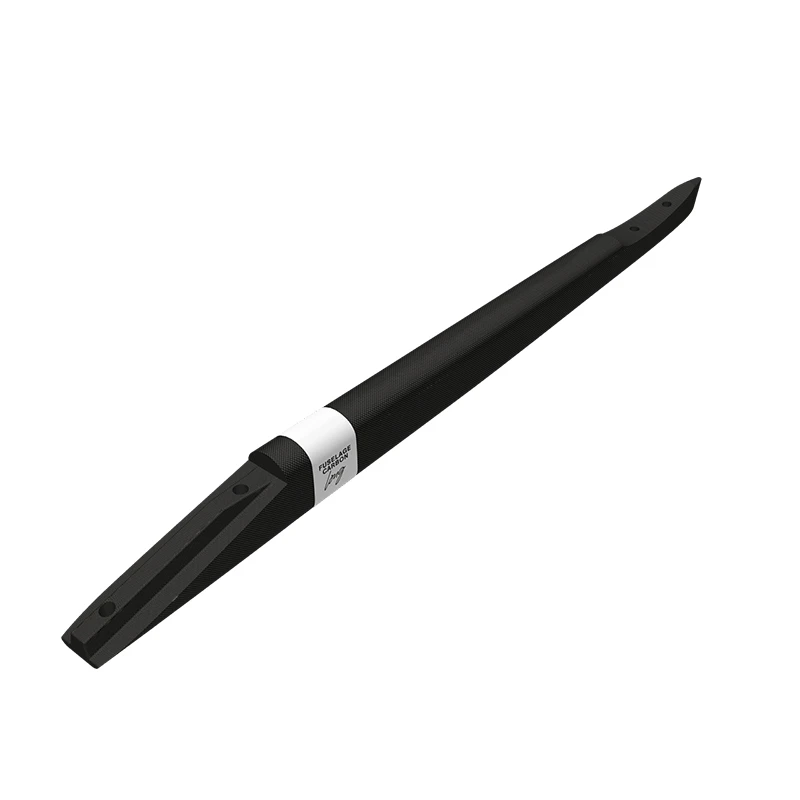

The Long fuselage is recommended for use with the Gravity 1800 & 2200.
WEIGHT: 200 g
LENGHT: 410 mm
