Shinn Suprahydro WingFoil Set

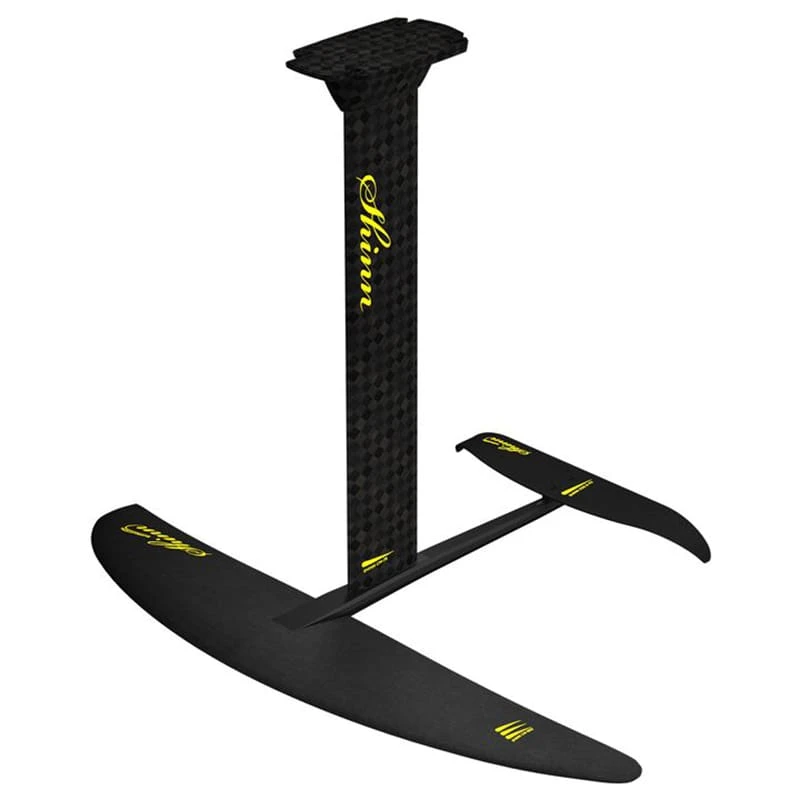

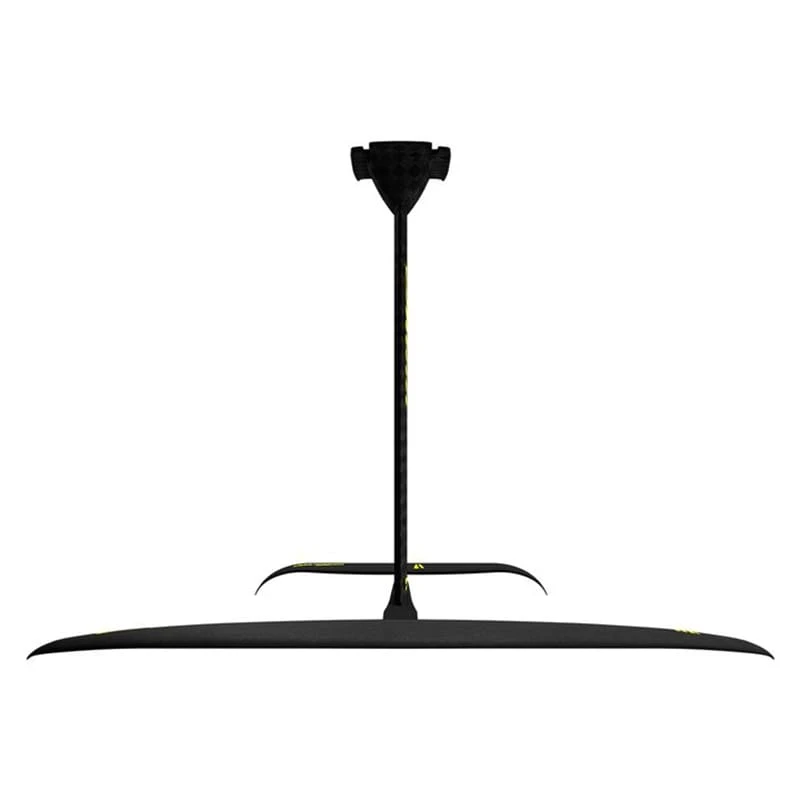

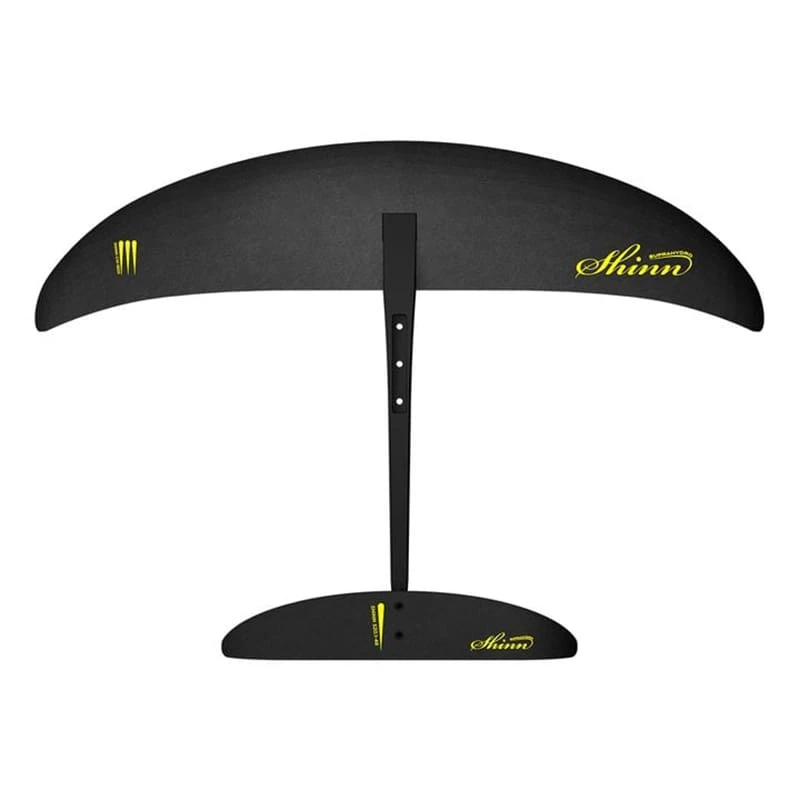

Shinn Suprahydro Aluminium Mast WingFoil Set

This Suprahydro foil set features a Shinn Aluminium mast with baseplate, Shinn MD Carbon wing and Shinn MD Carbon stabiliser combined with a CNC shaped 6061 aircraft grade aluminium fuselage.

Shinn use CNC cut, high density EPS foam core on both the wing and stabiliser achieve un-rivalled weight and rigidity which when combined with Shinns All the carbon parts are supplied in padded covers.

Performance Highlights

• Exceedingly low parasitic drag levels allow for gliding with even the smallest of swells
• Full rail Carve feeling made even more radical through the use of the 580mm fuselage
• Excellent low speed take-off with a progressive lift that won’t surprise you
• High Stall angle ideal for pumping and low speed manoeuvres
• Enhanced pitch stability increases rider confidence and ease of control over a range of speeds

Tech Specs: Extreme rigidity in the wing/fuselage connection makes the Suprahydro re-active and stable under foot.  Modular design allows over 300 different mast/fuselage/wing/stabiliser combinations with the minimum of easy to lose, hard to understand adaptors.  Ultra-light composite wing technology using CNC cut EPS foam cores.  High-Modulus carbon masts combine light weight with both lateral and torsional stiffness with 4 lengths available.  Adjustable mast position on the fuselage to suit every board and riding style.

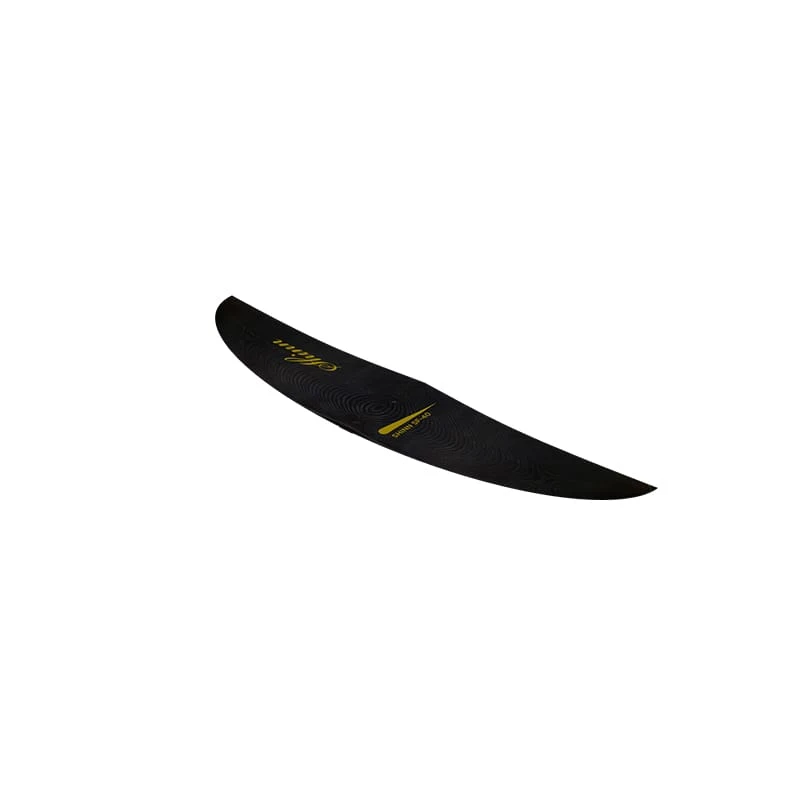

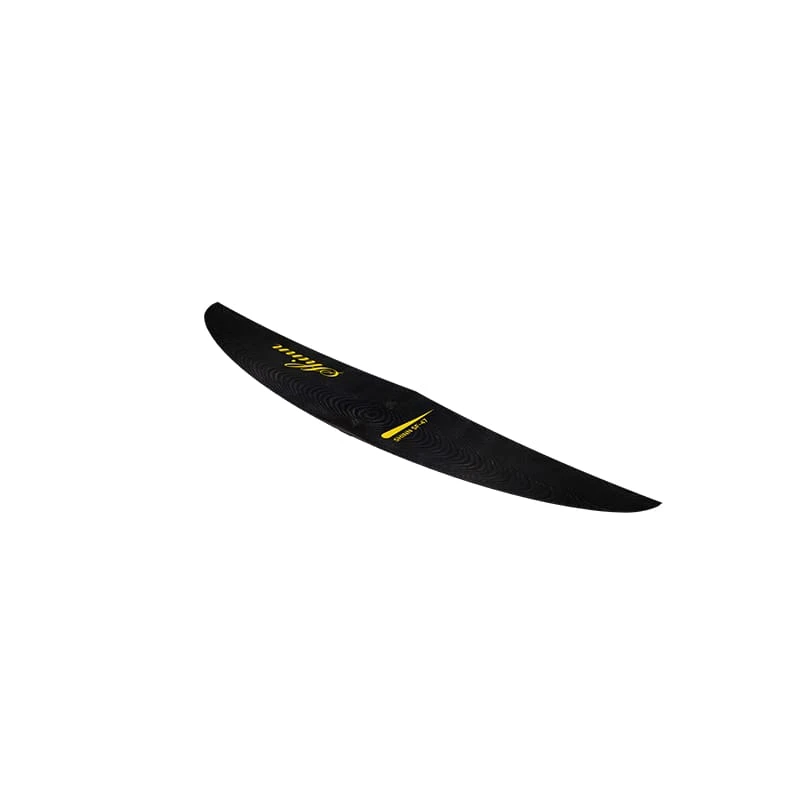

Stabiliser shims allow the rider to trim the lift depending on their weight, style and riding conditions with 2 stabiliser sizes allow for rider weight optimisation. Select the SF40 for rider weight >85kg and select the SF47 for rider weight <85kg.

We offer a choice of two mast lengths, 75cm and 90cm and two Fuselage lengths for versatility with the 735mm for glide, pumping and stability, 580mm for tighter radius more radical turns.

Front Wings:

Suprahydro Carbon 1400 Wing
Intended Use: WingFoiling in medium winds, SUP and Surf foil all waves

Ideal for:

• All round WingFoiling for riders <80 kg
• Stronger wind WingFoiling >80 kg
• Surf foil medium waves
• SUP foil medium waves
• Expert level pumping

Suprahydro Carbon 1650 Wing
Intended Use: Riders <85kg light wind WingFoiling, SUP foil, Surf foil small waves, Pumping.

Ideal for:

• Light wind WingFoiling riders <80kg
• All round WingFoiling riders >80kg
• SUP small waves
• Surf Small waves
• Advanced pumping

Suprahydro Carbon 1950 Wing
Intended Use: Light wind WingFoiling, SUP foil small waves, Downwinders, Pumping.

Ideal for:

• Light wind WingFoiling
• Surf foil in small waves
• SUP foil in small waves
• Downwinders
